Athena4A-Hb

Introducing Athena4A-Hb – SCLAVOS’ Latest Innovation

Athena4A-Hb revolutionizes knitted and woven fabric dyeing with advanced features like the Double Soft Floating (DSF) system, Aquachron FLX continuous washing, and real-time energy monitoring (TEAM). With Industry 4.0 integration, it offers full control over utilities consumption, ensuring superior fabric quality, low energy usage, and fast processing. Minimal fabric pilling, tension, and shrinkage make it ideal for delicate fabrics. Athena4A is the perfect blend of reliability, performance, and ease of operation for modern dyeing needs.

Athena4A-Hb Brochure
Athena4A

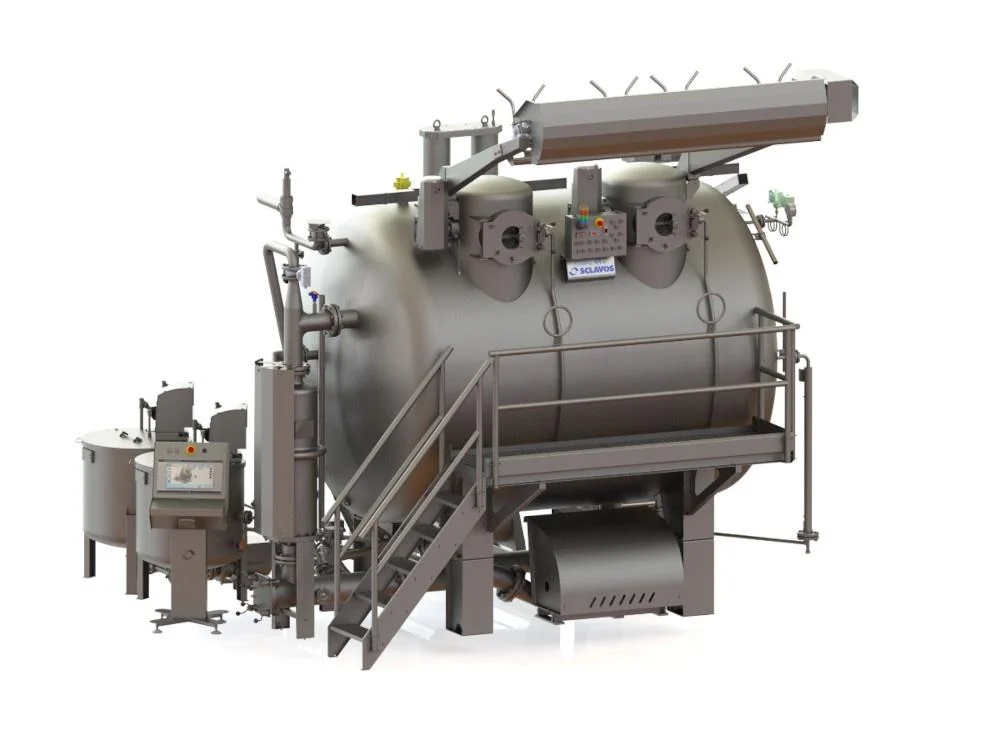

Athena4A-Hb is the newest development of SCLAVOS in the field of knitted and a range of woven fabric dyeing machines.

Athena4A-Hb incorporates some unique features such as:

  • A

    ESFL-Hb Extra Soft Flow system with Open Plaiting Device

  • A

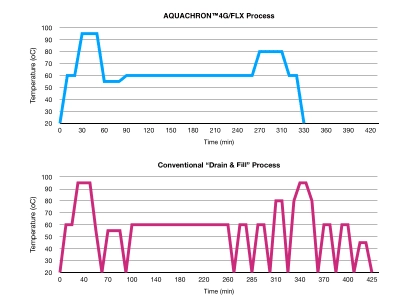

    Aquachron FLX continuous washing system for nonstop operation

  • A
    Flow Balancing Device for assuring smooth machine’s operation independent to utilities network fluctuations
  • A
    Real-time accurate measurement of consumed thermal energy (TEAM)
  • A
    Nozzle flow monitoring (NFM)
  • A
    Multi Rope operation system for increased capacity of light weight fabrics
  • A
    Automatic Settings Adjustment
  • A
    Advanced Automation system for total Interactive control and Industry 4.0 integration
  • A
    Full monitoring of utilities consumptions
  • A
    Variable Loading System
  • A
    Integrated Control of Liquor Ratio
  • A
    Low power pump built in house

Fabric Quality

Elimination of crease and rope marks creation, in heavy fabrics, especially in tightly knitted ones.

Low tension and shrinkage

Minimum fiber loss and lint’s creation

Gentle treatment of delicate fabrics

Hight quality treatment of synthetic fabrics

Performance

Fast process time

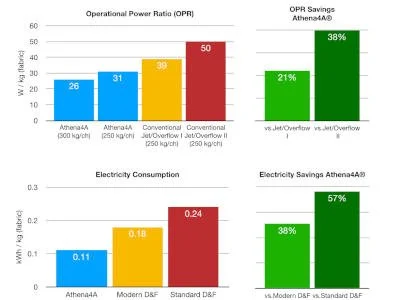

Low energy consumption

Minimum water consumption

Process is not affected at all
by utilities network fluctuations or lint accumulation

Ease of operation

Batch to batch repeatability

High capacity for light weight fabrics with no tangles

"Automatic" washing cycle

Data for costing calculation

High reliability due to high end parts use
